Product Information
Product Details
Product benefits
- High luminous efficacy up to 150 lm/W, ensuring maximum brightness with lower energy consumption.
- Durable construction with IP65 protection, making it dust‑tight and water‑resistant.
- Eco‑friendly — RoHS compliant, mercury‑free, and safe for the environment.
- Long lifespan with efficient heat dissipation, reducing maintenance costs.
Areas of application
- Outdoor spaces — stadiums, parking lots, building exteriors.
- Industrial facilities — warehouses, factories, workshops.
- Commercial areas — shopping malls, showrooms, and retail outlets.
- Public infrastructure — schools, hospitals, and community centers.
- Security lighting — perimeter illumination and surveillance zones.
Product features
- High quality structure.
- Well-designed heat dissipation technology.
- Upscale appearance.
- Mounting — Adjustable bracket for flexible installationAdjustable bracket for flexible installation.
- Certifications — CE, RoHS, CCC, EAC.
Technical Information
Electrical Parameter
| Frequency | 50~60 Hz |
|---|---|
| Input Voltage | AC100~277V |
| PF | >0.95 |
| THD | <15% |
| Driver Brand | Equivalent, MEAN WELL, MOSO |
Lighting Parameter
| Beam Angle | 60° |
|---|---|
| CCT | 6000K |
| Chips Brand |  LUMILEDS |
| Chips Type | SMD 2835 |
| CRI | >70 |
| Lumen Decay | 3% @ 1st year |
| Lumen Output | 150Lm/W |
| SDCm | <7 |
Mechanical Parameters
| IP Rating | IP66 |
|---|---|
| Lifespan | 50,000 Hours |
| Net Weight | 3.022KG |
| Operating Temperature | -40c to +50c |
| Junction Temperature | <85°C |
Material & Application
| Body Material | Die-casting Aluminum, Tempered Glass |
|---|---|
| Cover/Lens | PC |
| Mounting Type | Wall Mount |
IES FILES & Certificates

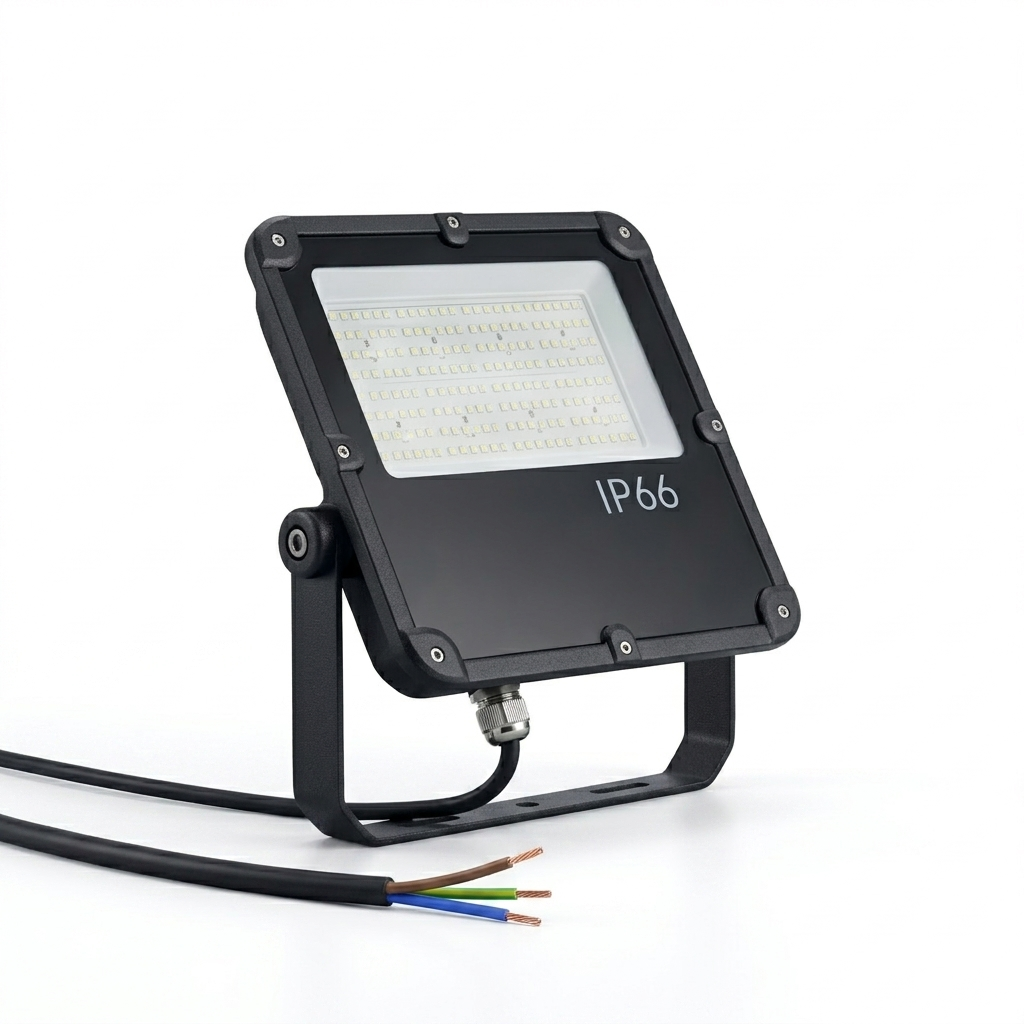

100W INFLUX LED FLOOD LIGHT C SERIES 150LM/W
